树莓派与LCD屏1602a

发表于 分类于 阅读次数： 本文字数： 941 阅读时长 ≈ 3 分钟

1. 1602a LCD屏

  • 接线端子表：
序号 LCD屏 16PIN 树莓派 40PIN 物理序号 备注
1 VSS 06 GND
2 VDD 02 5V
3 V0 电位器 对比度，0-5V
4 RS 08 GPIO-14
5 RW 06 写模式：接地
6 EN 10 GPIO-15
7 D0 -
8 D1 -
9 D2 -
10 D3 -
11 D4 11 GPIO-17
12 D5 12 GPIO-18
13 D6 13 GPIO-27
14 D7 15 GPIO-22
15 A 串约500Ω电阻后接02 背光正
16 K 06 背光负

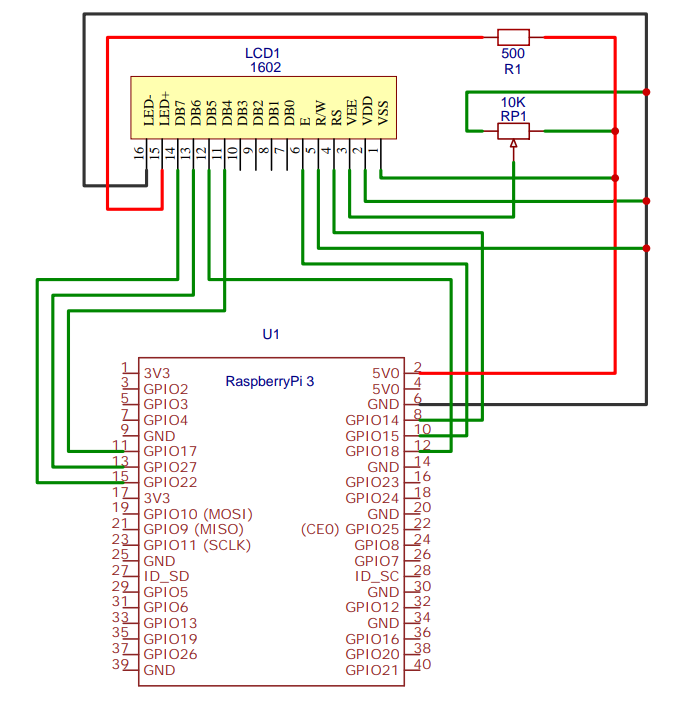

  • 接线图

2. 代码

  • 目录如下，就两个文件：
1
2
3
4
5
6
.
├───LCD1602a
│   ├───1602.py     # 主程序，可显示时间、CPU、RAM的使用情况
│   └───lcd1602.py  # 配置程序
│...

lcd1602.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
# based on code from lrvick and LiquidCrystal
# lrvic - https://github.com/lrvick/raspi-hd44780/blob/master/hd44780.py
# LiquidCrystal - https://github.com/arduino/Arduino/blob/master/libraries/LiquidCrystal/LiquidCrystal.cpp

import time

class lcd1602:
    # commands
    LCD_CLEARDISPLAY 		= 0x01
    LCD_RETURNHOME 		    = 0x02
    LCD_ENTRYMODESET 		= 0x04
    LCD_DISPLAYCONTROL 		= 0x08
    LCD_CURSORSHIFT 		= 0x10
    LCD_FUNCTIONSET 		= 0x20
    LCD_SETCGRAMADDR 		= 0x40
    LCD_SETDDRAMADDR 		= 0x80

    # flags for display entry mode
    LCD_ENTRYRIGHT 		        = 0x00
    LCD_ENTRYLEFT 		        = 0x02
    LCD_ENTRYSHIFTINCREMENT 	= 0x01
    LCD_ENTRYSHIFTDECREMENT 	= 0x00

    # flags for display on/off control
    LCD_DISPLAYON 		= 0x04
    LCD_DISPLAYOFF 		= 0x00
    LCD_CURSORON 		= 0x02
    LCD_CURSOROFF 		= 0x00
    LCD_BLINKON 		= 0x01
    LCD_BLINKOFF 		= 0x00

    # flags for display/cursor shift
    LCD_DISPLAYMOVE 	= 0x08
    LCD_CURSORMOVE 	    = 0x00

    # flags for display/cursor shift
    LCD_DISPLAYMOVE 	= 0x08
    LCD_CURSORMOVE 		= 0x00
    LCD_MOVERIGHT 		= 0x04
    LCD_MOVELEFT 		= 0x00

    # flags for function set
    LCD_8BITMODE 		= 0x10
    LCD_4BITMODE 		= 0x00
    LCD_2LINE 			= 0x08
    LCD_1LINE 			= 0x00
    LCD_5x10DOTS 		= 0x04
    LCD_5x8DOTS 		= 0x00



    def __init__(self, pin_rs=14, pin_e=15, pins_db=[17, 18, 27, 22], GPIO = None):
        if not GPIO:
            import RPi.GPIO as GPIO

        self.GPIO = GPIO
        self.pin_rs = pin_rs
        self.pin_e = pin_e
        self.pins_db = pins_db

        self.GPIO.setmode(GPIO.BCM)
        self.GPIO.setup(self.pin_e, GPIO.OUT)
        self.GPIO.setup(self.pin_rs, GPIO.OUT)

        for pin in self.pins_db:
            self.GPIO.setup(pin, GPIO.OUT)

        self.write4bits(0x33) # initialization
        self.write4bits(0x32) # initialization
        self.write4bits(0x28) # 2 line 5x7 matrix
        self.write4bits(0x0C) # turn cursor off 0x0E to enable cursor
        self.write4bits(0x06) # shift cursor right

        self.displaycontrol = self.LCD_DISPLAYON | self.LCD_CURSOROFF | self.LCD_BLINKOFF

        self.displayfunction = self.LCD_4BITMODE | self.LCD_1LINE | self.LCD_5x8DOTS
        self.displayfunction |= self.LCD_2LINE

        """ Initialize to default text direction (for romance languages) """
        self.displaymode =  self.LCD_ENTRYLEFT | self.LCD_ENTRYSHIFTDECREMENT
        self.write4bits(self.LCD_ENTRYMODESET | self.displaymode)   #  set the entry mode

        self.clear()


    def begin(self, cols, lines):
        if (lines > 1):
            self.numlines = lines
            self.displayfunction |= self.LCD_2LINE
            self.currline = 0


    def home(self):
        self.write4bits(self.LCD_RETURNHOME)    # set cursor position to zero
        self.delayMicroseconds(3000)            # this command takes a long time!


    def clear(self):

        self.write4bits(self.LCD_CLEARDISPLAY)  # command to clear display
        self.delayMicroseconds(3000)            # 3000 microsecond sleep, clearing the display takes a long time


    def setCursor(self, col, row):
        self.row_offsets = [ 0x00, 0x40, 0x14, 0x54 ]

        if ( row > self.numlines ):
                row = self.numlines - 1         # we count rows starting w/0

        self.write4bits(self.LCD_SETDDRAMADDR | (col + self.row_offsets[row]))


    def noDisplay(self):
        """ Turn the display off (quickly) """
        self.displaycontrol &= ~self.LCD_DISPLAYON
        self.write4bits(self.LCD_DISPLAYCONTROL | self.displaycontrol)


    def display(self):
        """ Turn the display on (quickly) """
        self.displaycontrol |= self.LCD_DISPLAYON
        self.write4bits(self.LCD_DISPLAYCONTROL | self.displaycontrol)


    def noCursor(self):
        """ Turns the underline cursor on/off """
        self.displaycontrol &= ~self.LCD_CURSORON
        self.write4bits(self.LCD_DISPLAYCONTROL | self.displaycontrol)


    def cursor(self):
        """ Cursor On """
        self.displaycontrol |= self.LCD_CURSORON
        self.write4bits(self.LCD_DISPLAYCONTROL | self.displaycontrol)


    def noBlink(self):
        """ Turn on and off the blinking cursor """
        self.displaycontrol &= ~self.LCD_BLINKON
        self.write4bits(self.LCD_DISPLAYCONTROL | self.displaycontrol)


    def noBlink(self):
        """ Turn on and off the blinking cursor """
        self.displaycontrol &= ~self.LCD_BLINKON
        self.write4bits(self.LCD_DISPLAYCONTROL | self.displaycontrol)


    def DisplayLeft(self):
        """ These commands scroll the display without changing the RAM """
        self.write4bits(self.LCD_CURSORSHIFT | self.LCD_DISPLAYMOVE | self.LCD_MOVELEFT)


    def scrollDisplayRight(self):
        """ These commands scroll the display without changing the RAM """
        self.write4bits(self.LCD_CURSORSHIFT | self.LCD_DISPLAYMOVE | self.LCD_MOVERIGHT);


    def leftToRight(self):
        """ This is for text that flows Left to Right """
        self.displaymode |= self.LCD_ENTRYLEFT
        self.write4bits(self.LCD_ENTRYMODESET | self.displaymode);


    def rightToLeft(self):
        """ This is for text that flows Right to Left """
        self.displaymode &= ~self.LCD_ENTRYLEFT
        self.write4bits(self.LCD_ENTRYMODESET | self.displaymode)


    def autoscroll(self):
        """ This will 'right justify' text from the cursor """
        self.displaymode |= self.LCD_ENTRYSHIFTINCREMENT
        self.write4bits(self.LCD_ENTRYMODESET | self.displaymode)


    def noAutoscroll(self):
        """ This will 'left justify' text from the cursor """
        self.displaymode &= ~self.LCD_ENTRYSHIFTINCREMENT
        self.write4bits(self.LCD_ENTRYMODESET | self.displaymode)


    def write4bits(self, bits, char_mode=False):
        """ Send command to LCD """
        self.delayMicroseconds(1000) # 1000 microsecond sleep
        bits=bin(bits)[2:].zfill(8)

        self.GPIO.output(self.pin_rs, char_mode)

        for pin in self.pins_db:
            self.GPIO.output(pin, False)

        for i in range(4):
            if bits[i] == "1":
                self.GPIO.output(self.pins_db[::-1][i], True)

        self.pulseEnable()

        for pin in self.pins_db:
            self.GPIO.output(pin, False)

        for i in range(4,8):
            if bits[i] == "1":
                self.GPIO.output(self.pins_db[::-1][i-4], True)

        self.pulseEnable()


    def delayMicroseconds(self, microseconds):
        seconds = microseconds / float(1000000)        # divide microseconds by 1 million for seconds
        time.sleep(seconds)


    def pulseEnable(self):
        self.GPIO.output(self.pin_e, False)
        self.delayMicroseconds(1)                # 1 microsecond pause - enable pulse must be > 450ns
        self.GPIO.output(self.pin_e, True)
        self.delayMicroseconds(1)                # 1 microsecond pause - enable pulse must be > 450ns
        self.GPIO.output(self.pin_e, False)
        self.delayMicroseconds(1)                # commands need > 37us to settle


    def message(self, text):
        """ Send string to LCD. Newline wraps to second line"""
        for char in text:
            if char == '\n':
                self.write4bits(0xC0) # next line
            else:
                self.write4bits(ord(char),True)


if __name__ == '__main__':
    lcd = lcd1602()
    lcd.clear()
    lcd.message(" LCD 1602 Test \n123456789ABCDEF")

1602.py

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
import os

import time
from lcd1602 import *
from datetime import datetime

# run command
def run_cmd(cmd):
    p = os.popen(cmd).readline().strip().split()
    return p


def now():
    return datetime.now().strftime('%Y-%m-%d %a \n%H:%M:%S')

def cpu():
    cpu_temp = run_cmd('vcgencmd measure_temp')
    cpu_info = run_cmd("top -bn1 | awk '/Cpu\(s\)/'")
    cpu_usage = 1 - float(cpu_info[7])/100.0

    status = 'CPU Temp: {}\n'.format(cpu_temp[0].replace("temp=", ""))
    status += '    Used: {:.2%}'.format(cpu_usage)
    return status

def ram():
    ram_info = run_cmd("free -m | awk '/Mem/'")
    ram_usage = (int(ram_info[1]) - int(ram_info[6])) / float(ram_info[1])

    status = 'RAM Totl: {}M\n'.format(ram_info[1])
    status += '    Used: {:.2%}'.format(ram_usage)
    return status

def ip():
    ip = run_cmd("sudo ifconfig wlan0 | awk '/inet/'")
    return 'IP Addr: \n  {}'.format(ip[1])

print(now(), cpu(), ram(), ip(), sep='\n')


lcd = lcd1602()
lcd.clear()

while(1):
    lcd.clear()
    lcd.message(now())
    time.sleep(10)

    lcd.clear()
    lcd.message(cpu())
    time.sleep(10)

    lcd.clear()
    lcd.message(ram())
    time.sleep(10)
